Trying to determine which reverse osmosis system will best meet your commercial/industrial filtration requirements? Use the reverse osmosis system comparison chart below to get the facts on different Culligan industrial reverse osmosis systems and compare product specifications. Then contact Culligan Industrial Water for assistance in selecting the specific RO system that will work best for your business.

We can custom design an industrial reverse osmosis system to meet your specific water treatment needs. We use only the highest quality components to build each of our Culligan reverse osmosis systems, offering you a reliable system that will last for years to come. Culligan RO systems will remove undesirable contaminants from your incoming source and feedwater, including: suspended particles, dissolved minerals, organic matter and bacteria. Culligan Industrial Water can create an efficient industrial RO system that exceeds your expectations. If you have any questions after reviewing the comparison chart below, simply give us a call!

Reverse Osmosis System Comparison Chart:

Reverse Osmosis System(Click series to learn more about available models!) Flow Rate*Gallons of Water Filtered per Minute (gpm) Filtration Capacity**in Gallons per Day (gpd)(varies by model) Total Dissolved SolidsMax TDS Filtration Capacity in Milligrams per Liter (mg/L) Salt RejectionTotal % of Contaminants Removed From Water System Recovery***Total % of Feedwater that Becomes Product Water (Varies by Model)
Culligan® E1 Series 3 gpm 250-4,000 gpd 2,500mg/l >98% Up to 50%
Culligan® E2 Series 7 gpm 4,000-10,000 gpd 2,500mg/l >98% Up to 75%
Culligan® G1 Series 3 gpm 500-4,000 gpd 2,500mg/l >98% Up to 50%
Culligan® G2 Series 13 gpm 4,000-19,000 gpd 2,500mg/l >98% Up to 75%
Culligan® G3 Series 200 gpm 24,000-288,000 gpd 2,500mg/l >98% Up to 75%
Culligan® M1 Series 3 gpm 250-4,000 gpd 2,500mg/l >98% Up to 50%
Culligan® M2 Series 7 gpm 4,000-10,000 gpd 2,500mg/l >98% Up to 75%


*Nominal flow rate is based on influent water conditions.
**Approximate nominal capacity based on properly pretreated feed water of 600 ppm TDS as NaCl, 77º F, Silt Density Index below 3.0, and 60 psi applied pressure supplying water to atmosphere. Productivity will vary depending on the feed water conditions.
***Nominal recovery capacity based on new RO membranes operating on a properly pretreated feed water of 500 ppm TDS as NaCl, 77 °F (25 °C), Silt Density Index (SDI) below 3, and supplying water to atmosphere. Productivity will vary depending on the actual feed water quality and temperature.


e1-series reverse osmosis system

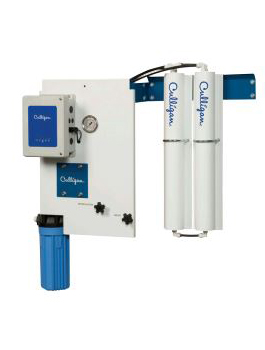

Culligan® E1 Series Reverse Osmosis

The Culligan® E1 Series Reverse Osmosis System is one of the most economical water treatment solutions available. In addition to reducing impurities in your make-up water, the E1 Series Reverse Osmosis System lowers maintenance costs by filtering out contaminants that can clog and foul equipment. The easy-to-use electronic controller included with this series will help keep operating costs low.

Some Optional Features Include:

  • Multi-Stage Pretreatment Filters
  • Ultraviolet Sterilization
  • Global Power Platform
  • Auto Shutdown on High Product TDS

Back to chart


e2-series reverse osmosis system

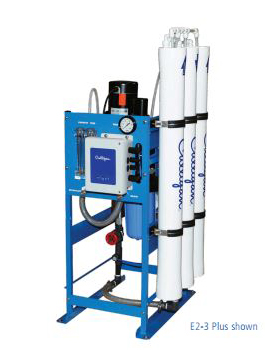

Culligan® E2 Series Reverse Osmosis

The Culligan® E2 Series Reverse Osmosis System is an affordable reverse osmosis unit that offers all of the same benefits as the compact E1 Series Reverse Osmosis System, but with higher flow rates and a greater filtration capacity. Just like the E1 Series, the E2 Series can help reduce your operating and post treatment expenses by filtering out equipment clogging contaminants from your water supply. This series comes equipped with an easy-to-use electronic controller.

Some Optional Features Include:

  • Multi-Stage Pretreatment Filters
  • Ultraviolet Sterilization
  • Global Power Platform
  • Auto Shutdown on High Product TDS

Back to chart


g1-series reverse osmosis system

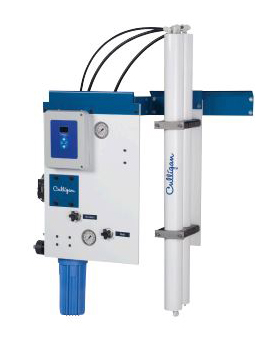

Culligan® G1 Series Reverse Osmosis

By installing a Culligan® G1 Reverse Osmosis System, you get all of the benefits of a cost-effective system configuration combined with reduced post-treatment expenses. The G1 Reverse Osmosis system is highly configurable and will help you to reduce maintenance, installation, and operating costs. System settings can be monitored and adjusted via a simple-to-use electronic controller.

Some Optional Features Include:

  • Leak Sensor
  • Multi-Stage Pretreatment Filters
  • Wireless Remote Digital Display
  • Two Pass Filtration
  • Ultraviolet Sterilization

Back to chart


g2-series reverse osmosis system

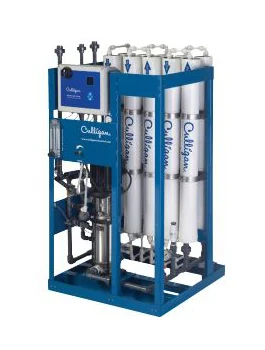

Culligan® G2 Series Reverse Osmosis

The Culligan® G2 Series Reverse Osmosis System makes it easy to manage your drinking water and industrial process water. With a Culligan® G2 Series Reverse Osmosis System you get expandable, flexible configuration options that can be customized to meet the most demanding and exacting water treatment requirements. The G2 Series features an electronic controller that automates water quantity and quality based on your specific consumption needs.

Some Optional Features Include:

  • Leak Sensor
  • Multi-Stage Pretreatment Filters
  • Wireless Remote Digital Display
  • Two Pass Filtration
  • Ultraviolet Sterilization

Back to chart


g3-series reverse osmosis system

Culligan® G3 Series Reverse Osmosis

With the Culligan® G3 Reverse Osmosis system there are virtually no limits on water quality, regardless of the quantity. A G3 Reverse Osmosis system will meet your most demanding industrial or commercial requirements. The G3’s reverse osmosis membrane is capable of processing large volumes of water while reducing water waste. All system operations can be managed via a touch panel electronic controller.

Some Optional Features Include:

  • Variable Frequency Drive (VFD)
  • Multi-Stage Pretreatment Filters
  • Wireless Remote Digital Display
  • Post Treatment Polishing Skids
  • Clean-In-Place (CIP) System

Back to chart


m1-series reverse osmosis system

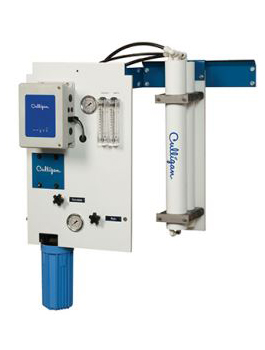

Culligan® M1 Series Reverse Osmosis

The Culligan® M1 Reverse Osmosis System is a cost-effective water treatment solution that comes with enhanced features to help lower your operating and post treatment expenses. The M1 Reverse Osmosis system helps lower expenses by reducing those water contaminants that may have negative effects on your industrial equipment. The easy-to-use electronic controller included with this series will help keep your operating costs low.

Some Optional Features Include:

  • Leak Sensor
  • Multi-Stage Pretreatment Filters
  • Wireless Remote Digital Display
  • Two Pass Filtration
  • Ultraviolet Sterilization

Back to chart


m2-series reverse osmosis system

Culligan® M2 Series Reverse Osmosis

The Culligan® M2 Series Reverse Osmosis System makes it easy to manage water for your industrial and commercial applications. The M2 Reverse Osmosis System can be configured and customized to meet your most demanding needs. The M2 RO System is easy to manage with an electronic controller that automates the quantity and quality of water based on your water consumption needs.

Some Optional Features Include:

  • Leak Sensor
  • Multi-Stage Pretreatment Filters
  • Wireless Remote Digital Display
  • Two Pass Filtration
  • Ultraviolet Sterilization

Back to chart


When you purchase your industrial reverse osmosis system from Culligan Industrial Water you get durable and efficient equipment backed by years of water treatment experience and technical expertise. We will take the time to understand all of your unique industrial water treatment requirements and will be there every step of the way, from planning to installation.

Contact your local Culligan dealer today to learn more about available industrial reverse osmosis systems

Contact a Culligan Industrial Water Expert today
